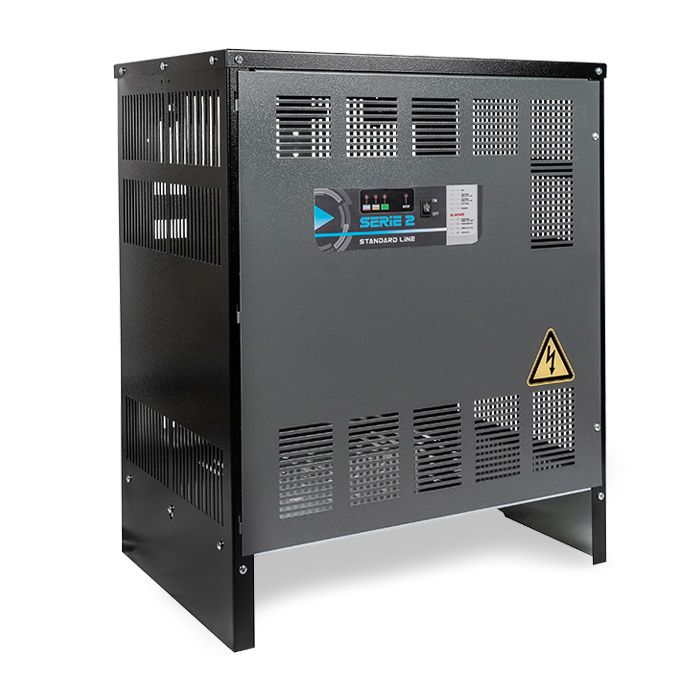

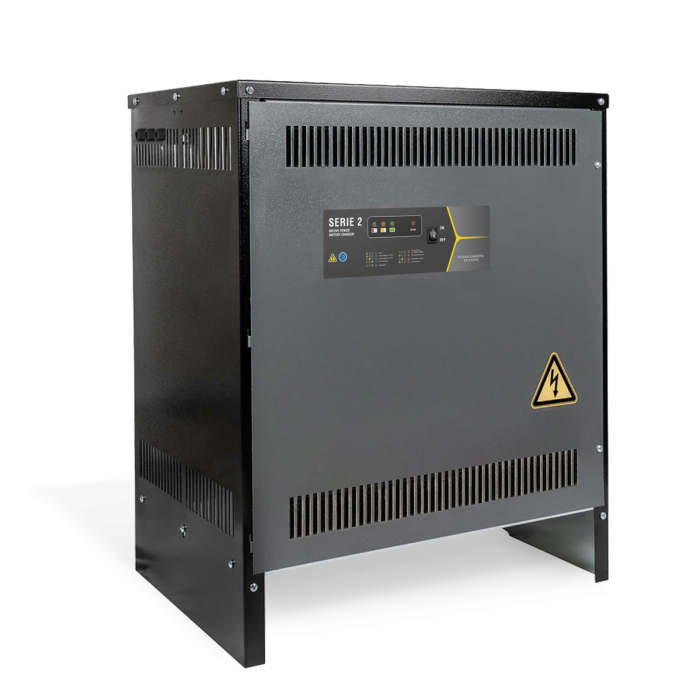

ATIB 36V 120 Serie 2 basic Wa charger (400V three phase)
SKU
40924
ATIB 36V 120A Serie 2 charger (400V - mains current 8,4A). Basic conventional charger, suitable for wet lead acid batteries. With universal 4-LED display and Easy Alarm Visualization.
ATIB 36V 120A Serie 2 charger (400V - mains current 8,4A). Serie 2 is the basic conventional Wa DIN 41774 range charger from ATIB which grants the best balance between price and performance, aimed for markets demangding flexible products. As entry level Serie 2 features universal 4-LED board, fix 3h temporal charge and compact casings.
Features:
Features:
- Automatic start, charging process and shutoff
- Universal Electronic Board with equalisation setting (dipswitch on PCB)
- Final charging stage (3h pre-set time)
- Leakage power transformer
- Wa charging profile (DIN 41774)
| Brand | ATIB |
|---|---|
| Voltage (V) | 36V |
| Batterycapacity Ah/5h 10-12h | 617 - 794 |
| Length (mm) | 550 |
| Width (mm) | 390 |
| Height (mm) | 660 |
| Cabinet type | I1 |
| Mains Voltage | 400V |
| Mains Current | 8,4 |
| Suited for battery type | Wet |
| High frequency or conventional technology | Conventional |
