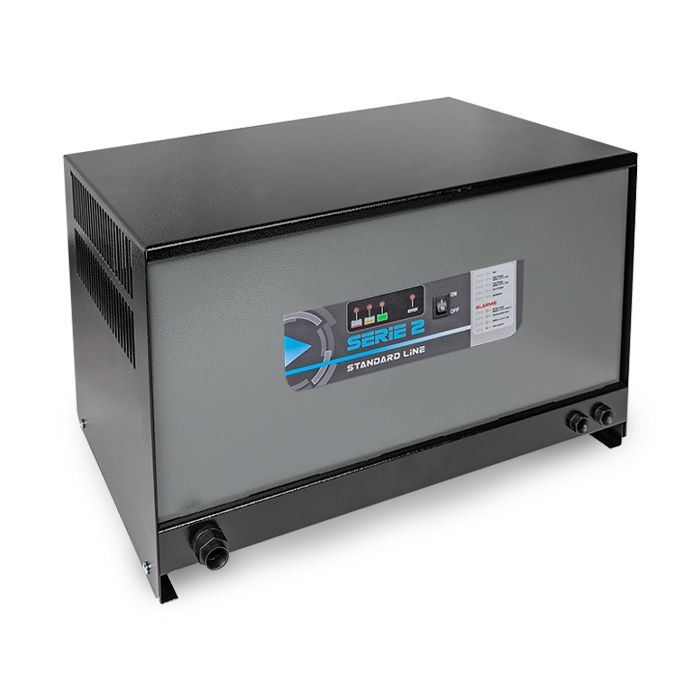

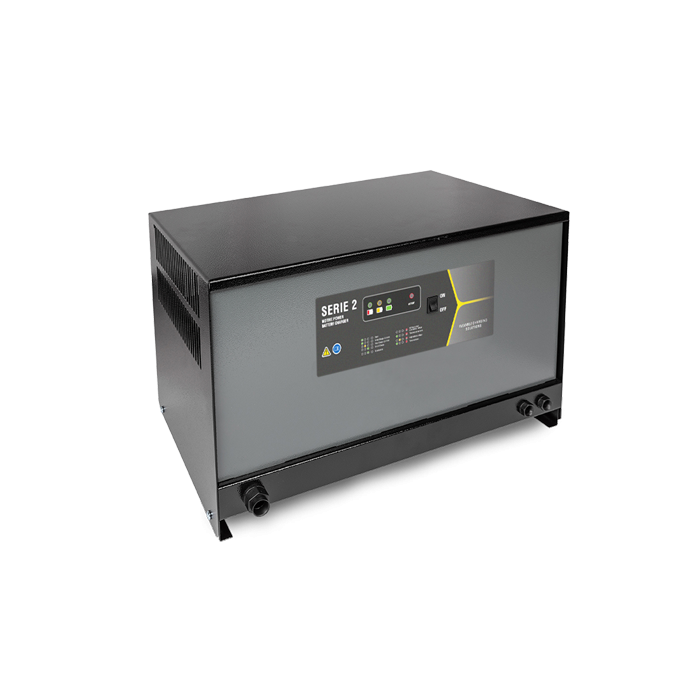

ATIB 48V 40 Serie 2 basic Wa charger (230V single phase)
SKU
40930
ATIB 48V 40A Serie 2 charger (230V - mains current 9,9A). Basic conventional charger, suitable for wet lead acid batteries. With universal 4-LED display and Easy Alarm Visualization.
ATIB 48V 40A Serie 2 charger (230V - mains current 9,9A). Serie 2 is the basic conventional Wa DIN 41774 range charger from ATIB which grants the best balance between price and performance, aimed for markets demangding flexible products. As entry level Serie 2 features universal 4-LED board, fix 3h temporal charge and compact casings.
Features:
Features:
- Automatic start, charging process and shutoff
- Universal Electronic Board with equalisation setting (dipswitch on PCB)
- Final charging stage (3h pre-set time)
- Leakage power transformer
- Wa charging profile (DIN 41774)
Brand | ATIB |
---|---|
Voltage (V) | 48V |
Batterycapacity Ah/5h 10-12h | 206 - 265 |
Length (mm) | 480 |
Width (mm) | 280 |
Height (mm) | 310 |
Cabinet type | P6 |
Mains Voltage | 220V |
Mains Current | 9,9 |
Suited for battery type | Wet |
High frequency or conventional technology | Conventional |
