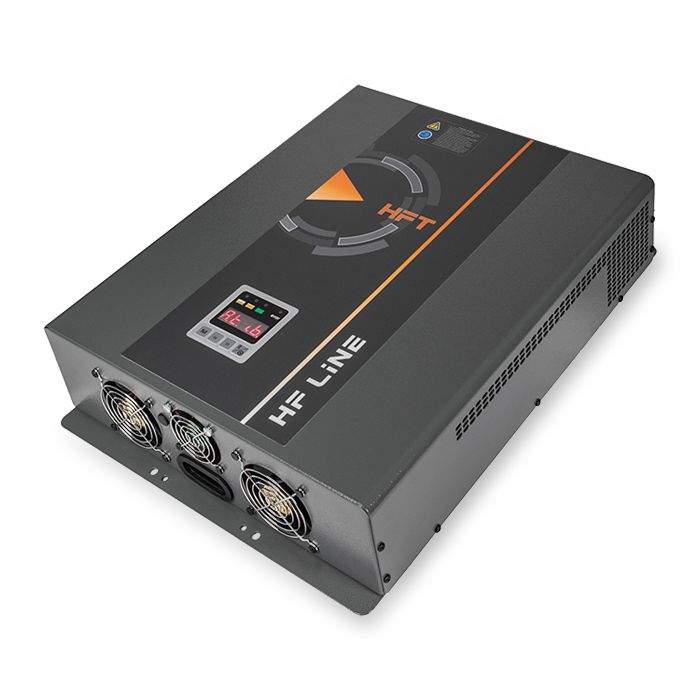

ATIB HF charger 24V 120A HFT (400V)
SKU
58286
ATIB 24V 120A HFT charger (400V - mains current 6,1A). HF charger with LED visual interface. Charger setting by display, current, capacity and charging profiles. Suitable for wet lead-acid, GEL, AGM batteries.
ATIB 24V 120A HFT charger (400V - mains current 6,1A). HFT is the three phase high frequency charger aimed for bigger traction batteries still featuring wall mounting. An integrated interface with digital display and LED visuals enables a complete overvieuw and setting of charger parameters, including delay start en easy trouble-shooting. Suitable for wet lead-acid, GEL, AGM batteries.
| Weight (kg) | 18,00 |
|---|---|
| Brand | ATIB |
| Voltage (V) | 24V |
| Current (A) | 120 |
| Batterycapacity Ah/5h 7-9h | 659 - 762 |
| Batterycapacity Ah/5h 10-12h | 914 - 1119 |
| Batterycapacity Ah GEL (12-14h) | 814 - 1015 |
| Length (mm) | 398 |
| Width (mm) | 114 |
| Height (mm) | 519 |
| Cabinet type | HFT |
| Mains Voltage | 400V |
| Mains Current | 6,1 |
| Suited for battery type | Lead acid (Wet, Gel, AGM) |
| High frequency or conventional technology | HF |
| Protection class | IP21 |
