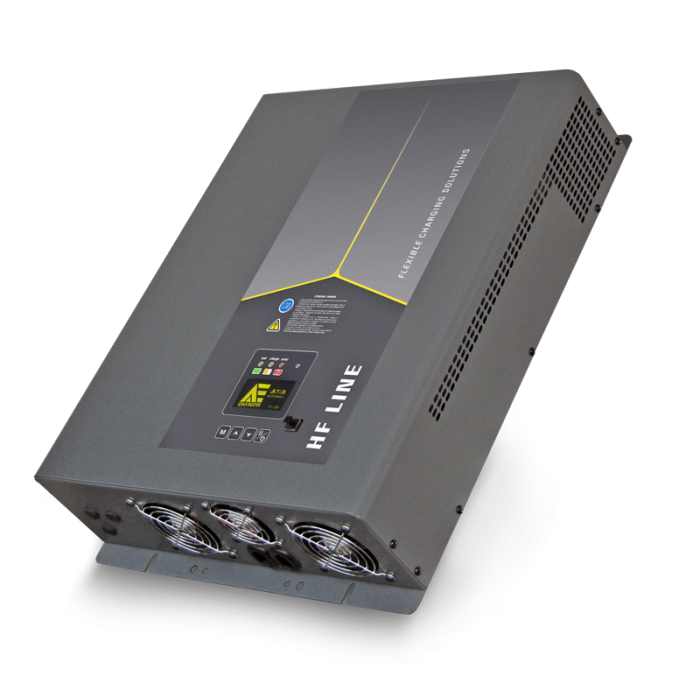

ATIB HF charger 24V 120A HFT1 (400V)
SKU
41012
ATIB 24V 120A HFT1 charger (400V - mains current 6,1A). High frequency charger, suitable for lead-acid batteries (nat, gel, AGM). With integrated OLED/LCD display, LED signaling of the charging state and USB interface. For easy setting of the charging parameters, including delay start and easy trouble-shooting.
ATIB 24V 120A HFT1 charger (400V - mains current 6,1A). HFT1 is the three phase high frequency charger equipped with integrated OLED/LCD display and USB interface. It is the enhanced version of our standard HFT. Output/input cables have on-side outlets complete with cable glands. Suitable for wet lead-acid, GEL, AGM batteries. By display you can set current, capacity and up to 7 pre-set charging profiles. Enhanced programming can be done by laptop / USB port. The charger gives a report of the last 50 cycles and key technical data by integrated USB port.
| Weight (kg) | 18,00 |
|---|---|
| Brand | ATIB |
| Voltage (V) | 24V |
| Current (A) | 120 |
| Batterycapacity Ah/5h 7-9h | 659 - 762 |
| Batterycapacity Ah/5h 10-12h | 914 - 1119 |
| Batterycapacity Ah GEL (12-14h) | 814 - 1015 |
| Length (mm) | 549 |
| Width (mm) | 416 |
| Height (mm) | 130 |
| Cabinet type | HFT1 |
| Mains Voltage | 400V |
| Mains Current | 6,1 |
| Suited for battery type | Lead acid (Wet, Gel, AGM) |
| High frequency or conventional technology | HF |
| Protection class | IP21 |
