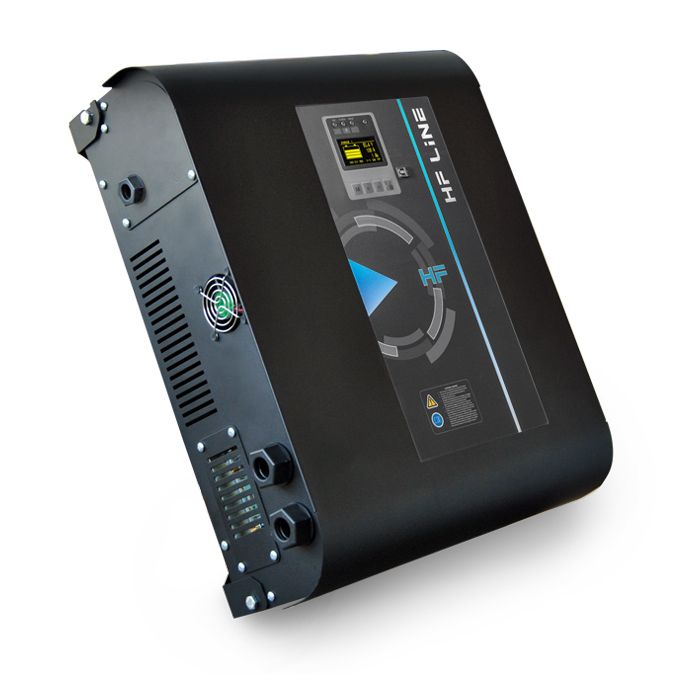

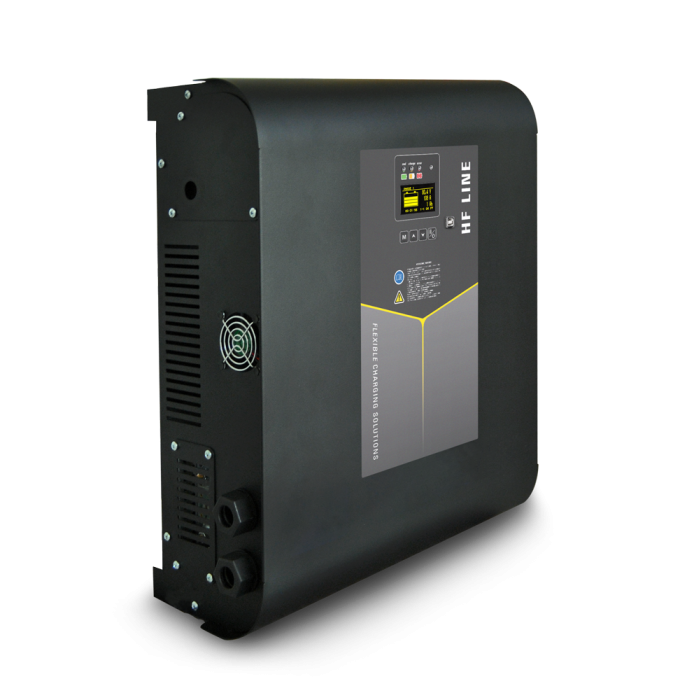

ATIB HF charger 24V 140A HTUC (400V)
SKU
41013
ATIB 24V 140A HTUC charger (400V - mains current 5,7A). High frequency charger, suitable for lead-acid batteries (nat, gel, AGM). With integrated OLED/LCD display, LED signaling of the charging state and USB interface. For easy setting of the charging parameters, including delay start and easy trouble-shooting.
ATIB 24V 140A HTUC charger (400V - mains current 5,7A). HTUC is the top level high frequency charger aimed to reach the highest performances. This range gathers all top features of HF ranges in terms of efficiency, power factor, ventilation, internal structure and general flexibility. An integrated interface with OLED/LCD display and integrated USB enables the best and easiest overview/setting of charge parameters, diagnostic and data reports. Suitable for wet lead-acid, GEL, AGM batteries. By display you can set current, capacity and up to 7 pre-set charging profiles. Enhanced programming can be done by laptop / USB port. The charger gives a report of the last 50 cycles and key technical data by integrated USB port.
| Weight (kg) | 26,00 |
|---|---|
| Brand | ATIB |
| Voltage (V) | 24V |
| Current (A) | 140 |
| Batterycapacity Ah/5h 7-9h | 769 - 889 |
| Batterycapacity Ah/5h 10-12h | 1066 - 1305 |
| Batterycapacity Ah GEL (12-14h) | 950 - 1185 |
| Length (mm) | 570 |
| Width (mm) | 456 |
| Height (mm) | 195 |
| Cabinet type | HTUC |
| Mains Voltage | 400V |
| Mains Current | 5,7 |
| Suited for battery type | Lead acid (Wet, Gel, AGM) |
| High frequency or conventional technology | HF |
| Protection class | IP21 |
