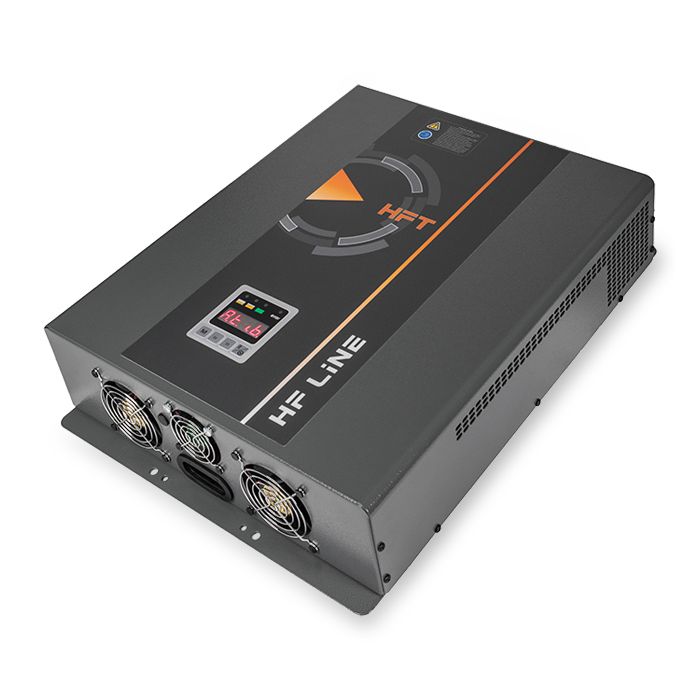

ATIB HF charger 80V 100A HFT (400V)
SKU
57982
ATIB 80V 100A HFT charger (400V - mains current 15,5A). HF charger with LED visual interface. Charger setting by display, current, capacity and charging profiles. Suitable for wet lead-acid, GEL, AGM batteries.
ATIB 80V 100A HFT charger (400V - mains current 15,5A). HFT is the three phase high frequency charger aimed for bigger traction batteries still featuring wall mounting. An integrated interface with digital display and LED visuals enables a complete overvieuw and setting of charger parameters, including delay start en easy trouble-shooting. Suitable for wet lead-acid, GEL, AGM batteries.
Weight (kg) | 18,00 |
---|---|
Brand | ATIB |
Voltage (V) | 80V |
Batterycapacity Ah/5h 7-9h | 549 - 635 |
Batterycapacity Ah/5h 10-12h | 762 - 932 |
Batterycapacity Ah GEL (12-14h) | 679 - 846 |
Length (mm) | 398 |
Width (mm) | 114 |
Height (mm) | 519 |
Cabinet type | HFT |
Mains Voltage | 400V |
Mains Current | 15,5 |
Suited for battery type | Lead acid (Wet, Gel, AGM) |
High frequency or conventional technology | HF |
Protection class | IP21 |
