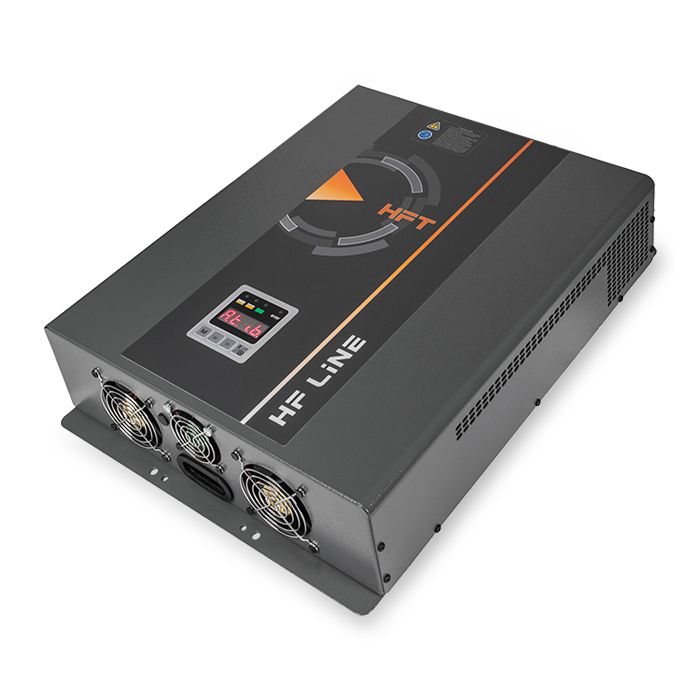

ATIB HF charger 80V 140A HFTD (400V)
SKU
41042
ATIB 80V 140A HFTD charger (400V - mains current 22,8A). HF charger with LED visual interface. Charger setting by display, current, capacity and charging profiles. Suitable for wet lead-acid, GEL, AGM batteries.
ATIB 80V 140A HFTD charger (400V - mains current 22,8A). HFTD is the three phase high frequency charger aimed for bigger traction batteries still featuring wall mounting. An integrated interface with digital display and LED visuals enables a complete overvieuw and setting of charger parameters, including delay start en easy trouble-shooting. Suitable for wet lead-acid, GEL, AGM batteries.
| Weight (kg) | 26,00 |
|---|---|
| Brand | ATIB |
| Voltage (V) | 80V |
| Batterycapacity Ah/5h 7-9h | 769 - 889 |
| Batterycapacity Ah/5h 10-12h | 1066 - 1305 |
| Batterycapacity Ah GEL (12-14h) | 950 - 1185 |
| Length (mm) | 535 |
| Width (mm) | 407 |
| Height (mm) | 259 |
| Cabinet type | HFTD |
| Mains Voltage | 400V |
| Mains Current | 22,8 |
| Suited for battery type | Lead acid (Wet, Gel, AGM) |
| High frequency or conventional technology | HF |
| Protection class | IP21 |
