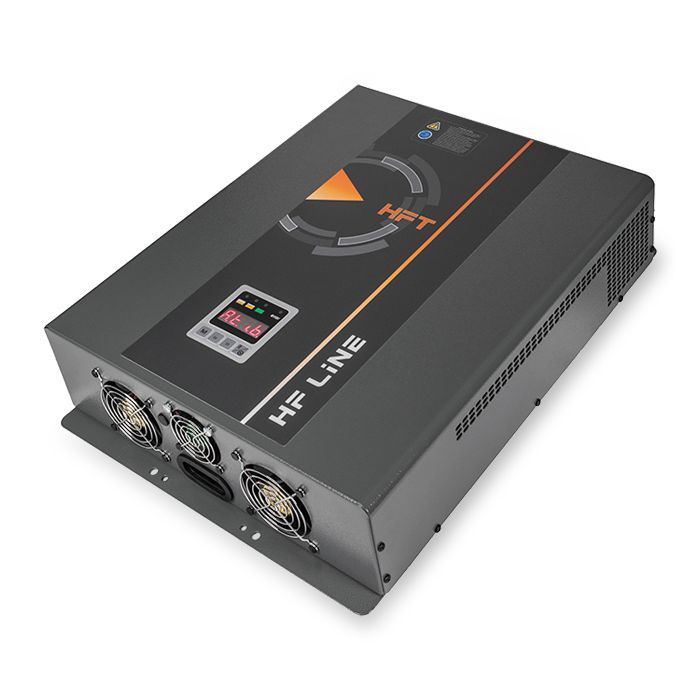

ATIB HF charger 80V 80A HFT (400V)
SKU
57998
ATIB 80V 80A HFT charger (400V - mains current 13,1A). HF charger with LED visual interface. Charger setting by display, current, capacity and charging profiles. Suitable for wet lead-acid, GEL, AGM batteries.
ATIB 80V 80A HFT charger (400V - mains current 13,1A). HFT is the three phase high frequency charger aimed for bigger traction batteries still featuring wall mounting. An integrated interface with digital display and LED visuals enables a complete overvieuw and setting of charger parameters, including delay start en easy trouble-shooting. Suitable for wet lead-acid, GEL, AGM batteries.
| Weight (kg) | 17,00 |
|---|---|
| Brand | ATIB |
| Voltage (V) | 80V |
| Batterycapacity Ah/5h 7-9h | 440 - 508 |
| Batterycapacity Ah/5h 10-12h | 609 - 746 |
| Batterycapacity Ah GEL (12-14h) | 543 - 677 |
| Length (mm) | 398 |
| Width (mm) | 114 |
| Height (mm) | 519 |
| Cabinet type | HFT |
| Mains Voltage | 400V |
| Mains Current | 13,1 |
| Suited for battery type | Lead acid (Wet, Gel, AGM) |
| High frequency or conventional technology | HF |
| Protection class | IP21 |
