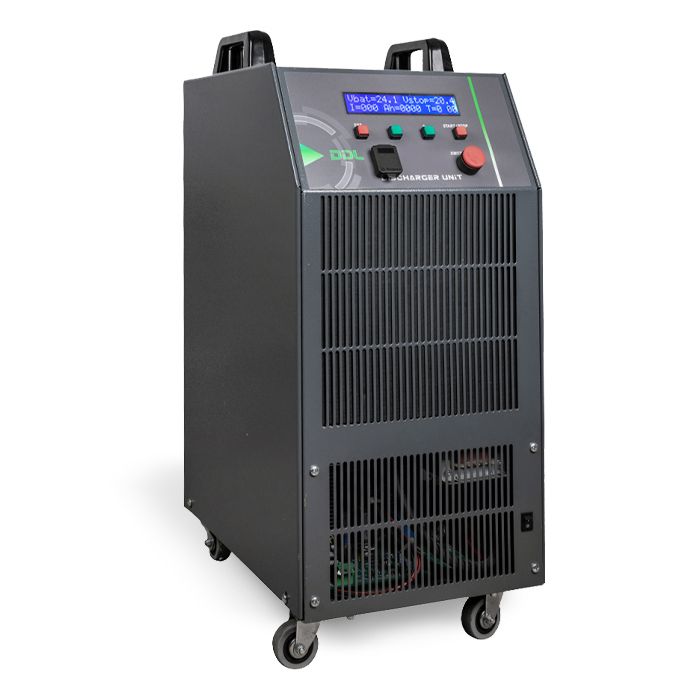

ATIB discharger 80V-150A DDL
SKU
57753
ATIB discharger 80V-150A DDL, for discharging and testing of batteries from 6V up to 80V with a discharging current of 150A. Integrated USB port for data storage.
ATIB discharger 80V-150A DDL (230V - 50/60 Hz). DDL discharger is aimed for workshop operations requiring discharge of batteries from 2V to 80V. The device works up to 150A discharging current and is capable of setting (n.2 units, up to max. 300A or n.3 units up to max 450A). Integrated digital LCD display enables a complete overview and setting of main parameters. USB port eables data-report available in .PDF and .XLS format.
| Weight (kg) | 32,00 |
|---|---|
| Brand | ATIB |
| Voltage (V) | 6V tot 80V |
| Multivoltage (V) | Yes |
| Length (mm) | 310 |
| Width (mm) | 700 |
| Height (mm) | 470 |
| Cabinet type | DDL |
| Mains Voltage | 220V |
| Suited for battery type | Lead acid (Wet, Gel, AGM) |
| High frequency or conventional technology | Conventional |
