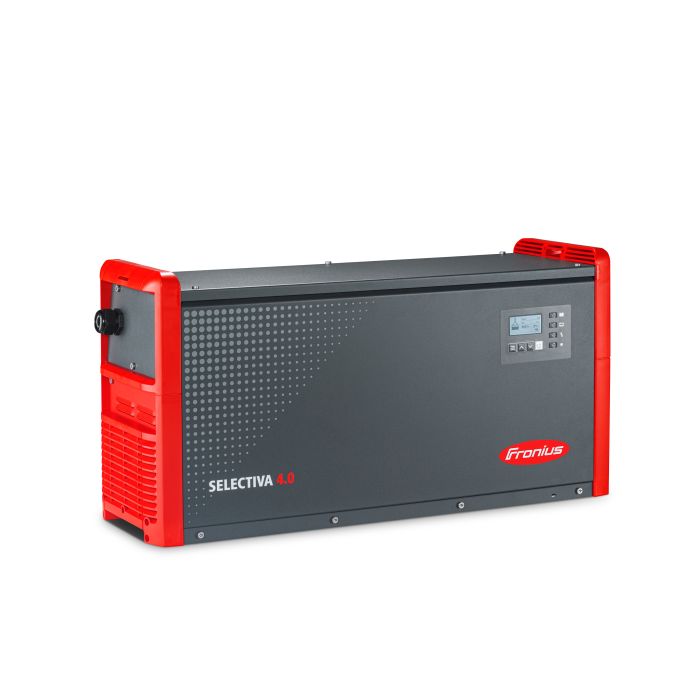

Fronius HF charger 24V 300A Selectiva 4.0 (400V, 18 kW)

SKU
35015
Fronius 24V 300A Selectiva 4.0 high frequency charger (18 kW, 400V - mains current 16A). The battery chargers from the Selectiva product family offer flexible charging of batteries with different voltages and capacities. Among the benefits for you are the simple and standarised operation and amount of space needed as well as low operating costs.
Fronius 24V 300A Selectiva 4.0 high frequency charger (18 kW, 400V - mains current 16A). With the Selectiva 4.0 charger family, Fronius offers one of the most efficient and advanced solutions on the market for charging lead-acid batteries. Benefit from our innovative charger technology, which not only saves costs, energy and CO2, but also offers you sustainable benefits. With the Selectiva 4.0 you are best prepared for you future challenges.

Functions:
  • Ri characteristic, adapts to each battery's requirements and delivers exactly the right current for optimal charging
  • The Ri charging process provides a cooler battery during charging, extending its life by 10-15% on average<\li>
  • Ri charging process enables you to charge different batteries and voltage classes with one charger (wet lead acid, gel, AGM, EFB, PSQ, CSM)
  • With an overall efficiency of up to 84% from the power connection to the battery, Fronius chargers significantly reduce your power consumption by up to 30%
  • Overcharging, which leads to faster contamination of the battery and the development of dangerous oxyhydrogen gas, can be reduced with the Ri charging process
  • Wide range of features, such as calendar function, charge & connect, automatic battery voltage detection, visualization of the coolest battery, no monday morning syndrome, opportunity charging and fast charging, power peak prevention, deep discharge characteristic, refresh chracteristic
More Information
Weight (kg) 47,00
Brand Fronius
Voltage (V) 24V
Multivoltage (V) Yes
Current (A) 300
Batterycapacity Ah/5h 7-9h 2180 - 2500
Batterycapacity Ah GEL (12-14h) 1670
Length (mm) 785
Width (mm) 392
Height (mm) 247
Cabinet type 18 kW
Mains Voltage 400V
Mains Current 16A
Suited for battery type Lead acid (Wet, gel, AGM, EFB, PsQ, CSM)
High frequency or conventional technology HF
Protection class IP20
