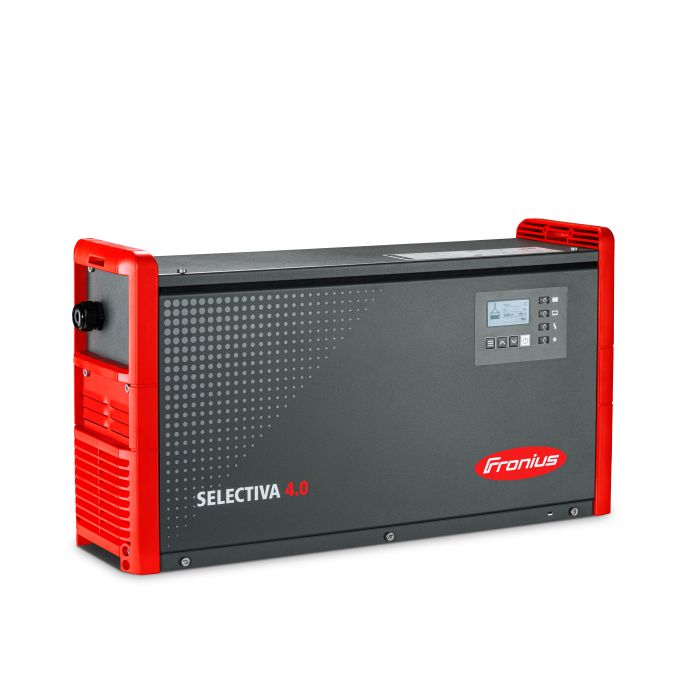

Fronius HF charger 48V 120A Selectiva 4.0 (400V, 8 kW)

SKU
35024
Fronius 48V 120A Selectiva 4.0 high frequency charger (8 kW, 400V - mains current 14A). The battery chargers from the Selectiva product family offer flexible charging of batteries with different voltages and capacities. Among the benefits for you are the simple and standarised operation and amount of space needed as well as low operating costs.
Fronius 48V 120A Selectiva 4.0 high frequency charger (8 kW, 400V - mains current 14A). With the Selectiva 4.0 charger family, Fronius offers one of the most efficient and advanced solutions on the market for charging lead-acid batteries. Benefit from our innovative charger technology, which not only saves costs, energy and CO2, but also offers you sustainable benefits. With the Selectiva 4.0 you are best prepared for you future challenges.

Functions:
  • Ri characteristic, adapts to each battery's requirements and delivers exactly the right current for optimal charging
  • The Ri charging process provides a cooler battery during charging, extending its life by 10-15% on average<\li>
  • Ri charging process enables you to charge different batteries and voltage classes with one charger (wet lead acid, gel, AGM, EFB, PSQ, CSM)
  • With an overall efficiency of up to 84% from the power connection to the battery, Fronius chargers significantly reduce your power consumption by up to 30%
  • Overcharging, which leads to faster contamination of the battery and the development of dangerous oxyhydrogen gas, can be reduced with the Ri charging process
  • Wide range of features, such as calendar function, charge & connect, automatic battery voltage detection, visualization of the coolest battery, no monday morning syndrome, opportunity charging and fast charging, power peak prevention, deep discharge characteristic, refresh chracteristic
More Information
Weight (kg) 23,00
Brand Fronius
Voltage (V) 48V
Multivoltage (V) Yes
Current (A) 120
Batterycapacity Ah/5h 7-9h 870 - 1250
Batterycapacity Ah/5h 10-12h 1430 - 1800
Batterycapacity Ah GEL (12-14h) 670 - 1000
Length (mm) 633
Width (mm) 344
Height (mm) 180
Cabinet type 8 kW
Mains Voltage 400V
Mains Current 14A
Suited for battery type Lead acid (Wet, gel, AGM, EFB, PsQ, CSM)
High frequency or conventional technology HF
Protection class IP20
